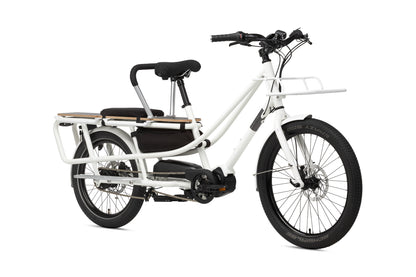

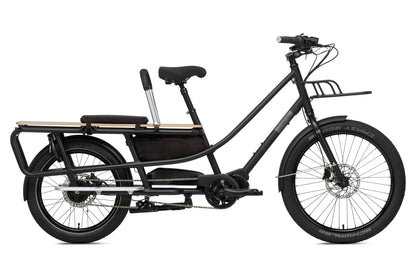

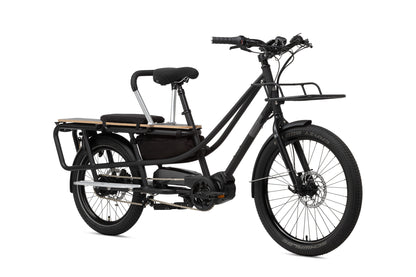

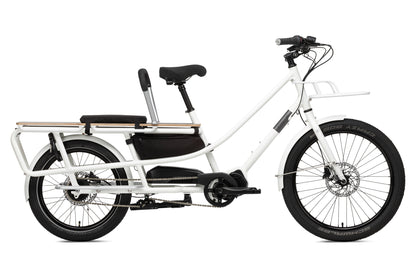

Cream - Happy Wagon

The Happy Wagon is a practical and comfortable electric bike that allows you to transport everything, anywhere! It is built around an aluminum frame and Shimano's new Step Cargo E6100 motor with a 504Wh battery.

The bike is equipped with a 5-speed Shimano Nexus gear hub, Schwalbe tires and hydraulic disc brakes. It also has a dropper seatpost for stability when the bike is stationary, and an adjustable stem, making it perfect for riders from 150 cm to 190 cm. The Happy Wagon can be configured to carry large loads or up to three small children in seats. Larger children can also be transported directly on the rear platform.

Accessories included:

• Rear passenger grab handle
• Rear seat cushion
• Sides/footrests
• Front luggage carrier

These accessories make the Happy Wagon even more practical and versatile, perfect for transporting passengers or goods with ease.

Frame: aluminum frame
Sizes: ONE SIZE
Fork: aluminum fork 1 1/8", 15mm through axle
Handlebar: aluminum, width: 620mm, bare bore: 31.8mm, rise 38mm, backsweep: 38degree
Grips: Cream Gummy Grips with alloy bar-ends
Stem: aluminum adjustable a-head stem, 90mm
Saddle: Cream Cargo
Seatpost: X-fusion Manic 30.9 437.5mm Travel: 150 mm / Kind Shock eTeni 30.9 440.5mm Travel: 125 mm
Brake front: Shimano MT200 Hydraulic Brakes, rotor: 160mm
Brake rear: Shimano MT200 Hydraulic Brakes, rotor: 180 mm
Shifters: Shimano Nexus 5 speed revo shifter
Crankset: Shimano STEPS E6100 crankset with Shimano Steps chainring 38T
Bottom bracket: integrated with Shimano STEPS
Front derailleur: ---
Rear derailleur: ---
Cassette: ---
Chain/belt: KMC STAINLESS 1/2"x3/32"
Hub front: aluminum, sealed bearings, 36h, centerlock, for 15mm through axle
Hub rear: Shimano Nexus SGC7000-5D 5-speed hub, 36H, sprocket 30t
Rims: disc brake, aluminium, double wall
Tires: Schwalbe Pick Up20 x 2.4 and Schwalbe Crazy Bob 24 x 2.35
Carrier / Basket:
Mudguards: aluminum painted, 68mm width
Headset: threadless 1 1/8''
Light front: Supernova Pure E3
Light rear: Supernova E3 Tail Light 2
Pedals: FP-930ZP
Spokes: stainless steel
Stand: aluminum
Additional: Stylish bell / Axa Rear wheel Lock/ Rails, SKS chaincover, rails, front rack, passenger handle,
Weight: 28kg / maximum load 200 kg (rider + luggage)
Seat Tube Diameter: 31.8 mm
Seatpost diameter: 30.9 mm
Pedal thread: 9/16"
Stem clamp size: bare bore 31.8
Max tires: front: 24x2.4, rear: 20x2.4
Electric Drive: Shimano STEPS E61000
Battery: 504 Wh
